1.Description

The Foner Solar Rigid Floating Solar Mounting System is engineered for photovoltaic installations on calm water bodies such as reservoirs, lakes, ponds, and mining subsidence areas.

Designed with high-strength HDPE floating platforms and corrosion-resistant structural components, the system provides reliable support for large-scale floating solar power plants.

With modular architecture, high buoyancy, and strong environmental resistance, the system ensures stable operation for more than 25 years, even under demanding environmental conditions.

2.Product Overview

Reliable Floating Solar Structures for Water-Based Solar Power Plants

Floating photovoltaic systems offer an innovative solution for solar power generation in regions with limited land availability. By installing solar panels on water surfaces, floating solar systems help optimize land use while improving energy efficiency.

The Foner Solar rigid floating solar mounting system is specifically designed to provide:

· High structural stability

· Long-term durability

· Efficient installation

· Flexible system layout

The system is widely used in utility-scale floating photovoltaic projects around the world.

3.System Components

Core Components of the Floating Solar Mounting System

A complete floating photovoltaic mounting system consists of several engineered components that work together to ensure system stability and performance.

· Floating Platforms

High-density polyethylene (HDPE) floaters provide buoyancy and support for the entire solar array. These materials offer excellent resistance to UV radiation, corrosion, and environmental aging.

· Structural Support Framework

Support structures made of galvanized magnesium-aluminum steel (S350GD) provide high structural strength while maintaining excellent corrosion resistance.

· Stainless Steel Fasteners

All bolts, nuts, and washers are manufactured using 304 stainless steel, ensuring long-term durability in outdoor environments.

· Anchoring System

The anchoring system secures the floating solar array to the water body, preventing movement caused by wind or water currents.

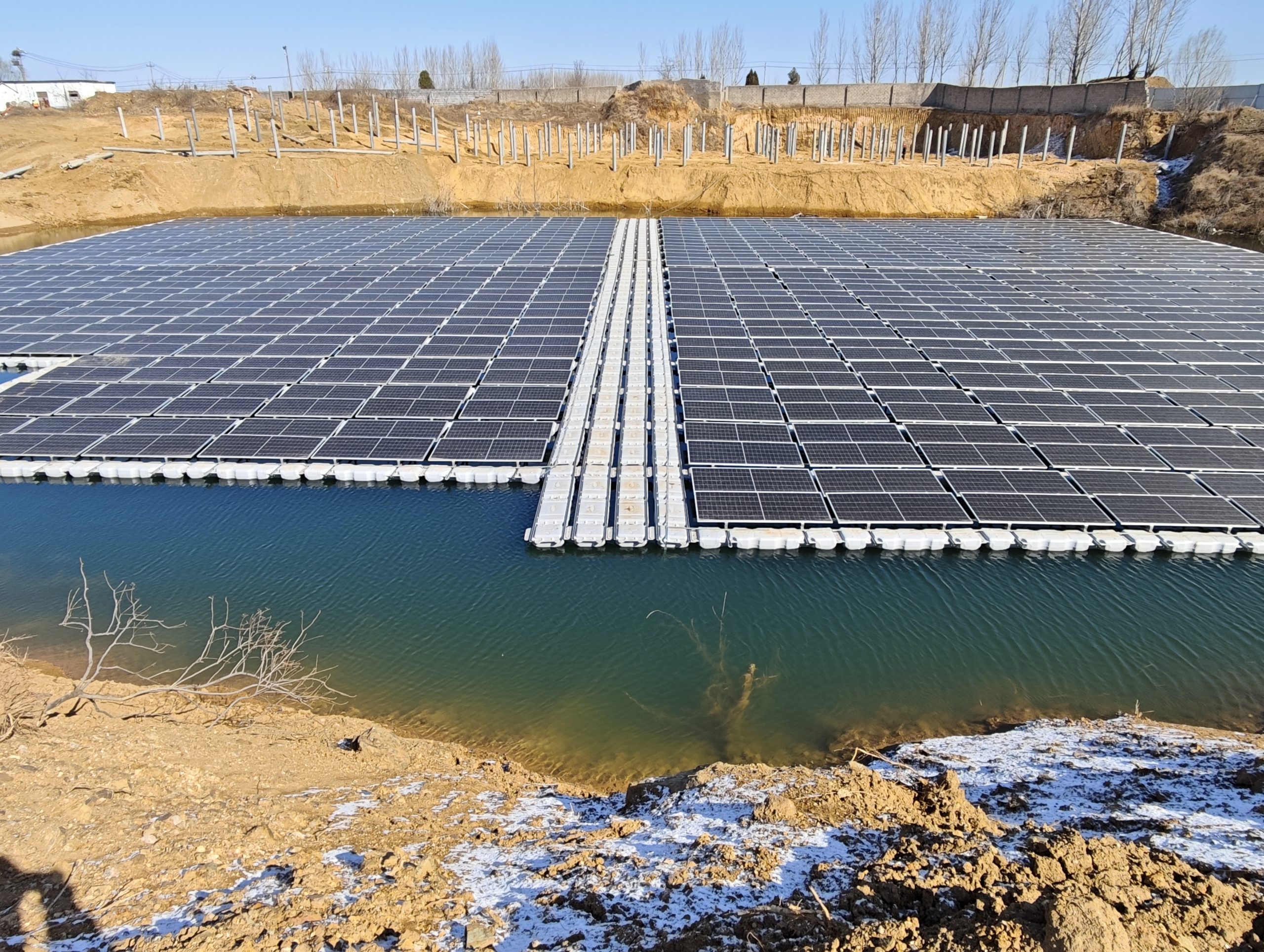

· Maintenance Walkways

Integrated walkway floaters provide safe access for maintenance personnel, enabling efficient inspection and system operation.

4.Key Product Advantages

Engineering Advantages of Foner Floating Solar Systems

· High Structural Strength

The system uses reinforced structural design capable of withstanding wind speeds up to 50 m/s and snow loads up to 1.5 kN/m², ensuring reliable performance under extreme environmental conditions.

· Modular Installation Design

The modular floating structure allows rapid on-site installation without heavy construction equipment. Pre-assembled components significantly reduce installation time and labor costs.

· Excellent Corrosion Resistance

HDPE floaters and corrosion-resistant structural materials ensure long-term durability in water environments.

All exposed metal components are treated with anti-corrosion coatings and salt-spray resistance testing.

· Optimized Transportation Efficiency

The compact modular design allows higher container loading efficiency, reducing international transportation costs for large-scale projects.

· Flexible System Layout

The floating solar mounting system supports multiple module arrangements, including north-south and east-west orientations, allowing project developers to optimize energy generation based on site conditions.

5.Installation & Operation

Efficient Installation and Maintenance

The floating solar mounting system is designed to simplify construction and reduce installation time.

Shore-Based Assembly

Most system components can be assembled on the shore before being deployed onto the water surface, reducing construction complexity.

High Installation Efficiency

Under typical installation conditions, a team of approximately 15 workers can install up to 200 kW of floating solar capacity per day.

Easy Operation and Maintenance

Integrated walkways allow maintenance personnel to safely access solar panels for cleaning, inspection, and repair.

The floating system provides a buoyancy capacity of approximately 150 kg/m², ensuring safe maintenance operations.

6.Technical Specifications

Floating Solar Mounting System Technical Data

Parameter	Specification
Supported Solar Modules	182 / 210 mono-crystalline modules
Compatible Module Power	500W – 720W
Floater Material	HDPE (High-Density Polyethylene)
Structural Material	Galvanized magnesium-aluminum steel
Design Service Life	≥ 25 years
Wind Resistance	Up to 50 m/s
Snow Load	1.5 kN/m²
Installation Tilt Angle	0° – 15° customizable
Floater Load Capacity	150 kg/m²

7.Typical Applications

Water Bodies Suitable for Floating Solar Installation

The rigid floating solar mounting system can be deployed in a wide range of water environments, including:

· Reservoirs

· Lakes

· Irrigation ponds

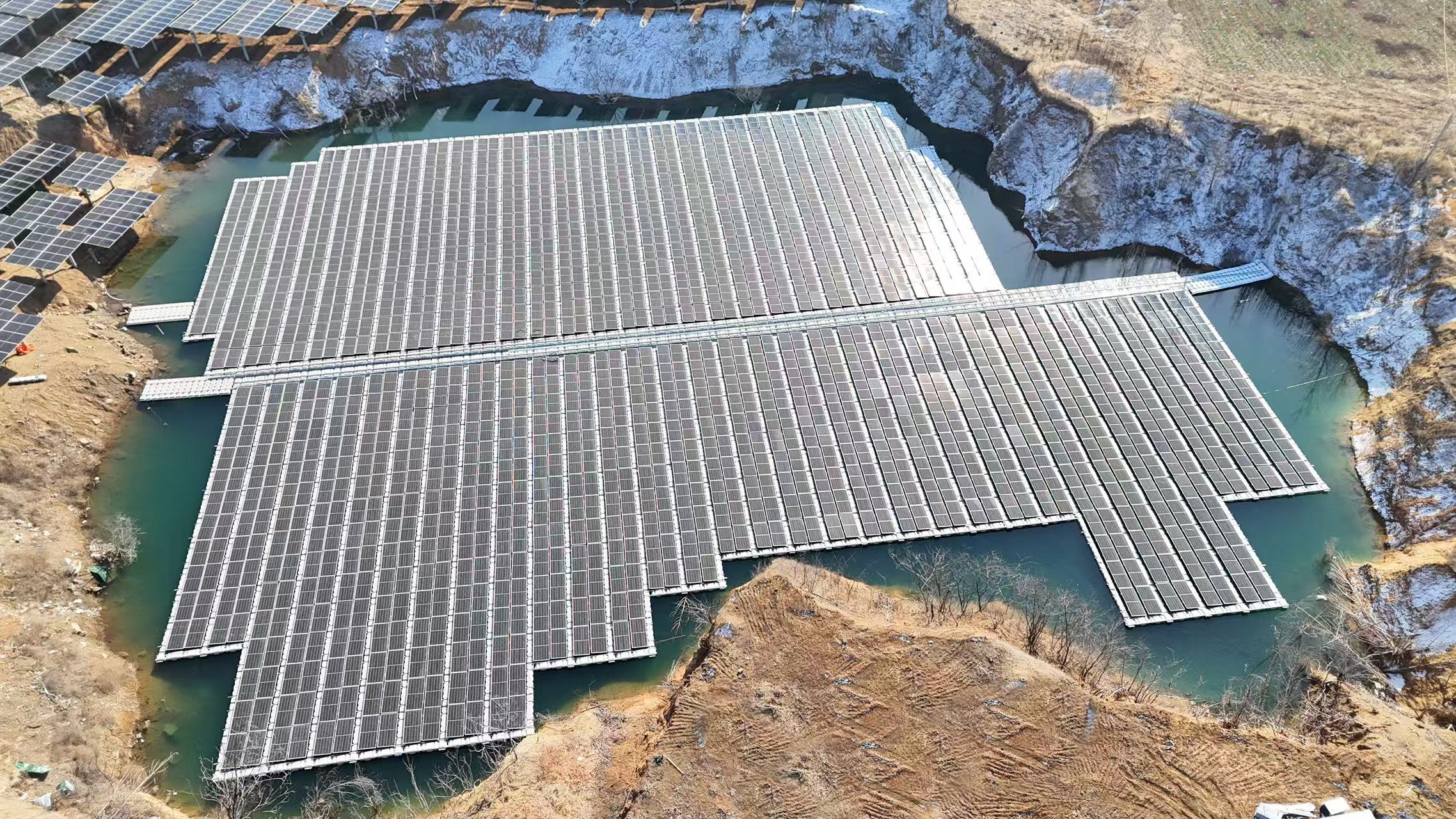

· Coal mining subsidence areas

· Industrial water reservoirs

· Wastewater treatment ponds

These environments provide ideal conditions for floating photovoltaic installations.

8.Manufacturing & Quality Assurance

Advanced Manufacturing and Quality Control

· Foner Solar operates a modern production facility with strong manufacturing capabilities.

· Annual production capacity: 200 MW floating solar structures

· Advanced blow-molding manufacturing process

· Proprietary HDPE material formulation technology

The company maintains strict quality standards and testing procedures to ensure product reliability.

9.Certifications

International Certifications and Testing

To ensure product performance and safety, the floating solar mounting system has passed multiple industry tests and certifications.

· ISO9001 Quality Management System

· TÜV Rheinland certification

· Wind tunnel testing

· Structural load testing

These certifications confirm the system’s reliability for international floating solar projects.

10.Global Project Experience

Floating Solar Projects Delivered Worldwide

Foner Solar has supplied floating solar systems for projects in multiple regions, including:

· Thailand

· Vietnam

· Indonesia

· Malaysia

· Kenya

Our floating photovoltaic structures have been successfully deployed in a variety of environmental conditions.
